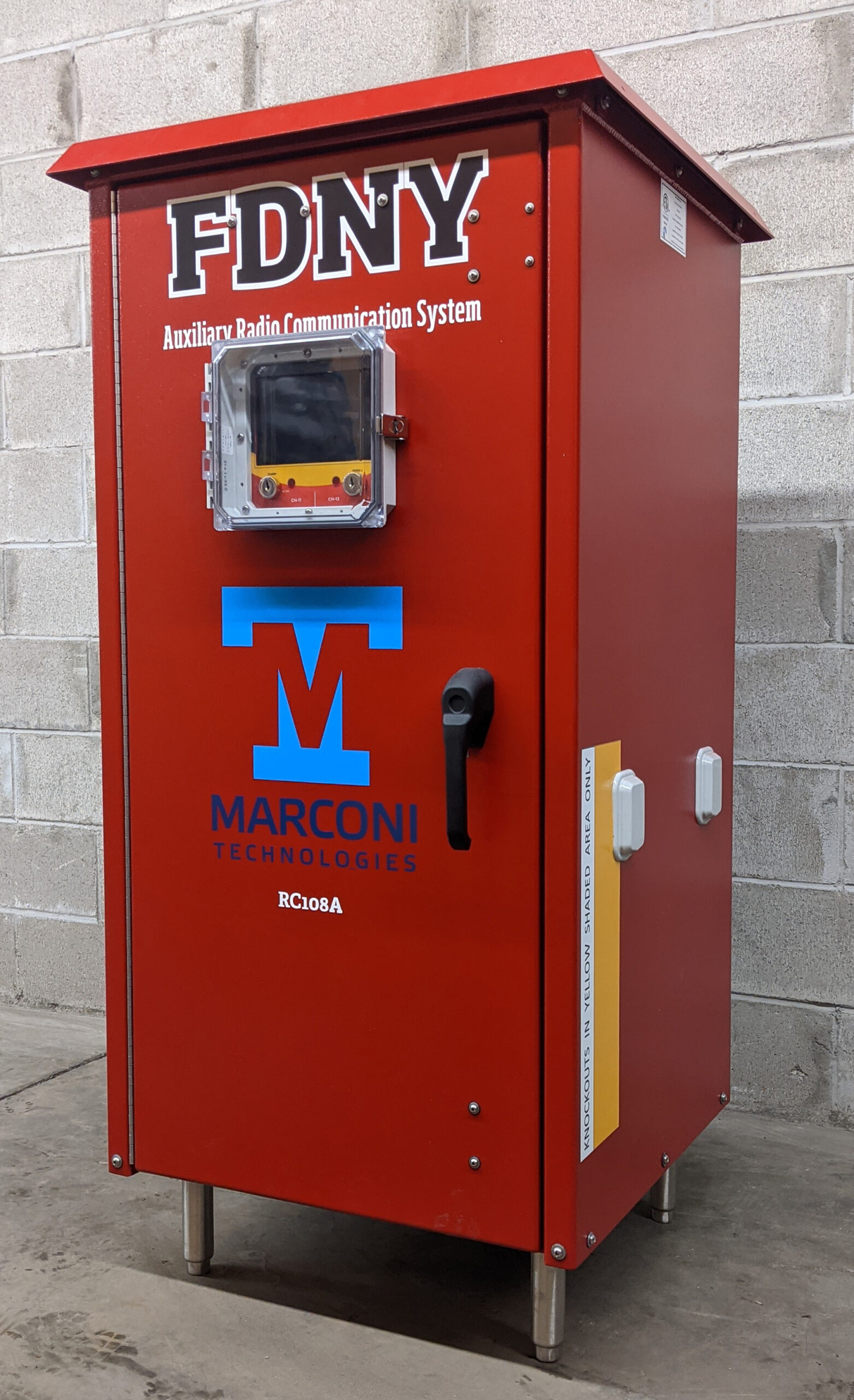

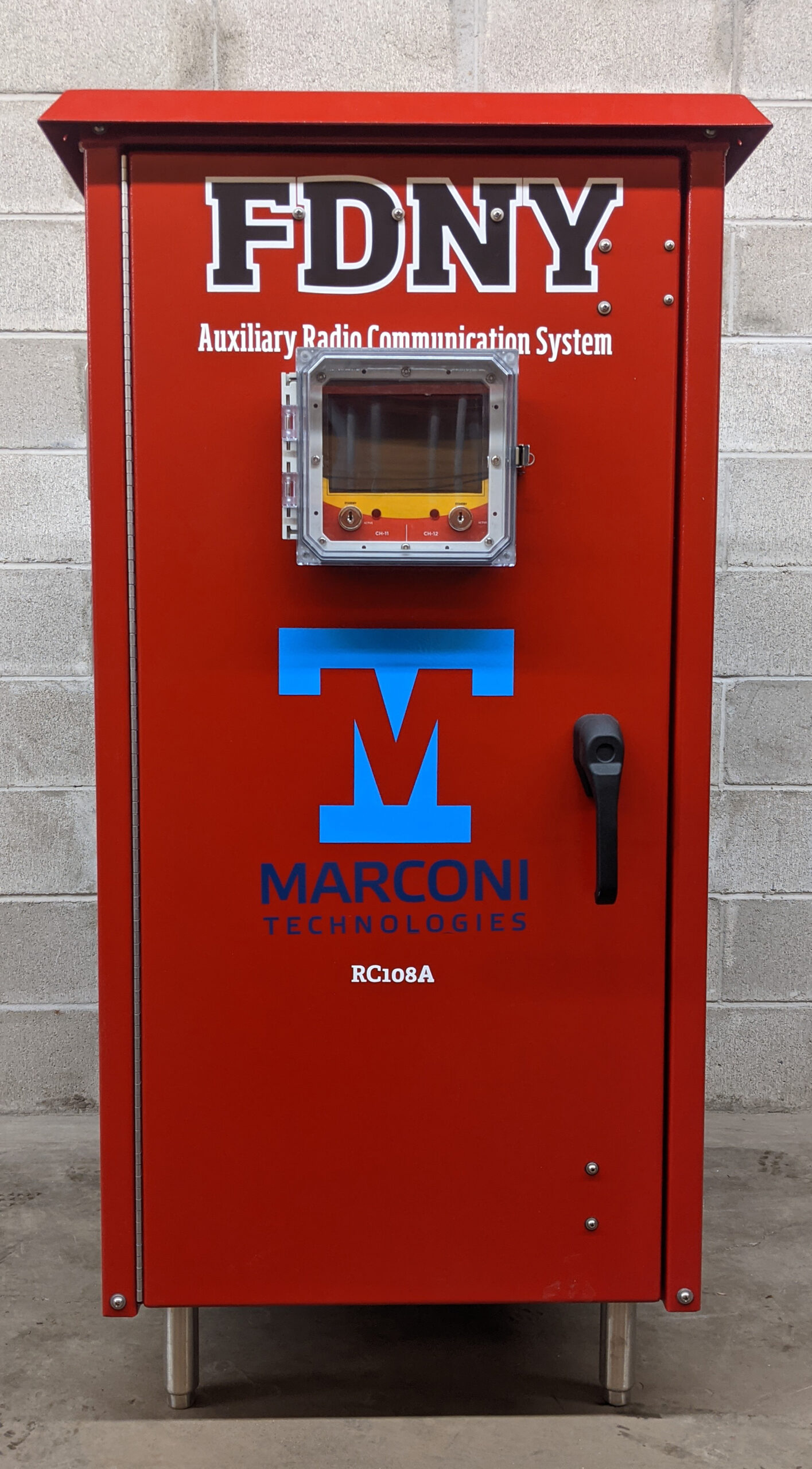

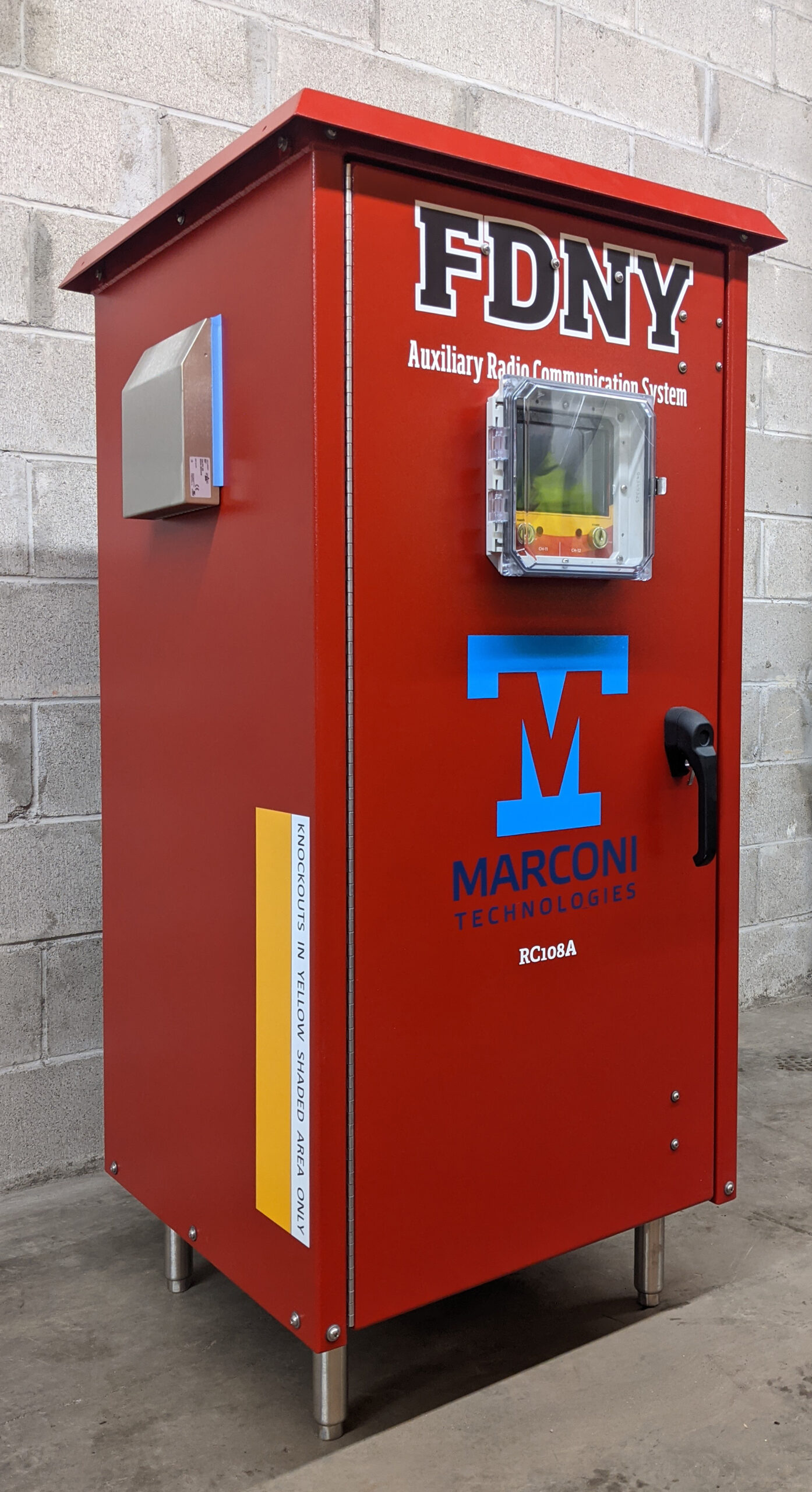

RC108A Radio Amplification Unit (RAU with DRC)

SKU: MT-RC108A Category: Tags: , , , , ,

Request a Quote

Add to Quote

The RC 108N radio amplification unit (RAU) is a NEMA 4 rated cabinet that houses the key components of the ARC System. This includes a radio repeater, combiner/duplexer, power supply, sealed lead acid batteries, and data acquisition and monitoring unit. This system requires a 110V 20A direct line with a dedicated service switch and connects directly to the DRC (dedicated radio console CMD-V1) with (2) CAT 5 cables, one for data/power and one for voice.

The RC108A RAU comes with the DRC as a package.

The RC 108A radio amplification unit (RAU) is a NEMA 4 rated cabinet that houses the key components of the ARC System. This includes a radio repeater, combiner/duplexer, power supply, sealed lead acid batteries, and data acquisition and monitoring unit. This system requires a 110V 20A direct line with a dedicated service switch and connects directly to the DRC (dedicated radio console CMD-V1) with (2) CAT 5 cables, one for data/power and one for voice.

KEY FEATURES:

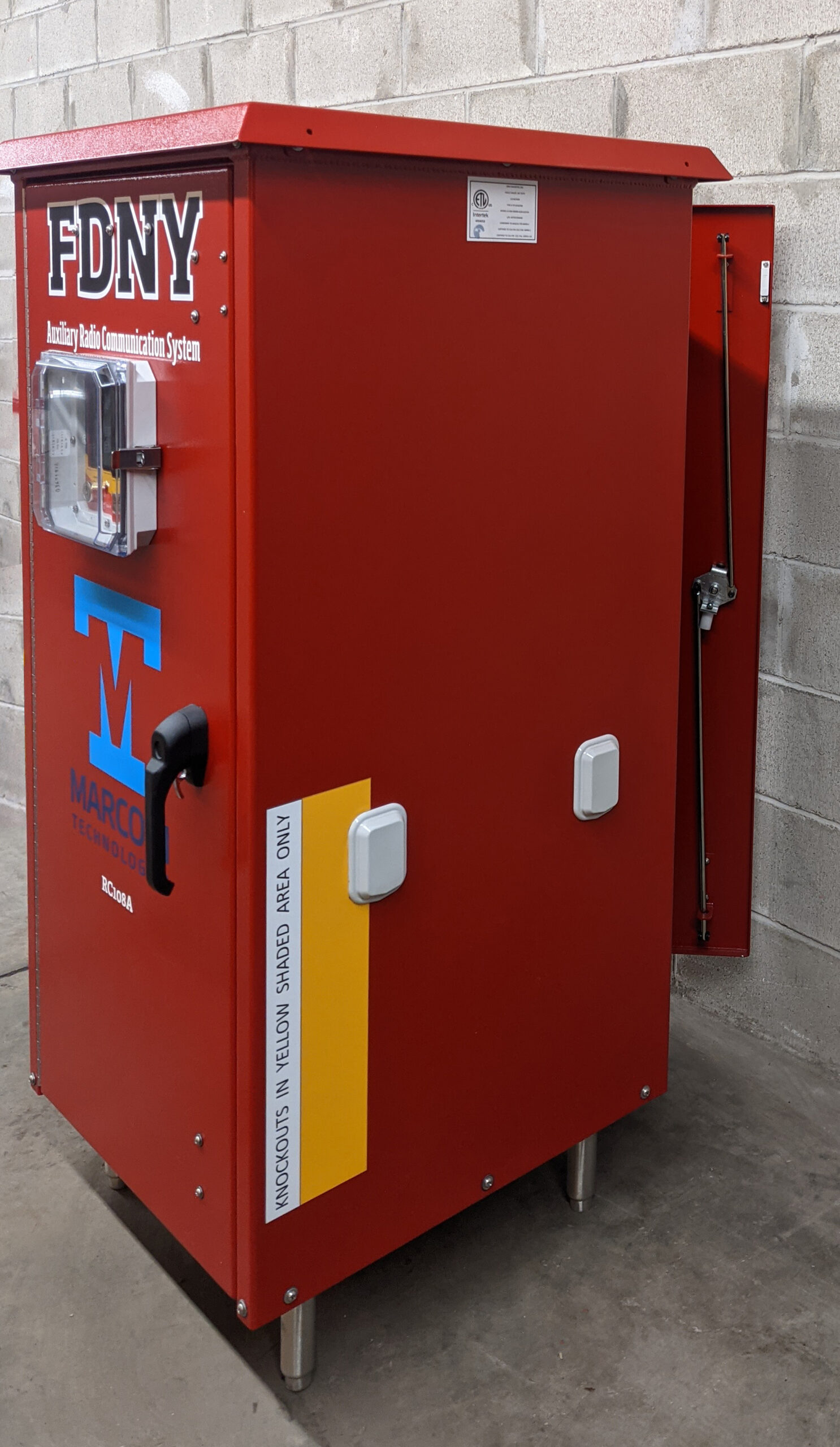

  • NEMA 4 enclosure, non ferrous with red powder coat, front and back doors and 3 point locking system, locks via FDNY padlocks.
  • NEMA 4 mechanical venting.
  • TAIT TB9100 dual channel repeater with P25 capability, dual mode operation, smart AC/DC operation, from 5 to 25 watt transmit power.
  • Cavity combiner / band pass duplexer, 100W output.
  • 120V to 24V 20A UL Listed power supply with UPS unit, NFPA 72 test function, fully compliant to NFPA 1221 alarm requirements, battery polarity protection.
  • Power distribution unit with surge protection with 15A resettable circuit breaker and 1800 joule surge suppressor, active monitoring for ground, surge, and power.
  • Data acquisition unit which constantly monitors all system parameters, internet capable for remote monitoring, building management capable for integration into an existing system.
  • Antenna and cable monitor accurately monitors antenna and cable system VSWR levels, measures small changes in antenna VSWR with high feeder and interface losses. (up to a 10Db cable loss)
    System initiates a self test once every 24 hours.
  • (2) x 110Ah 12V sealed lead acid batteries for 24H reserve power, 6 hour full use power backup.
  • 6 dry contact outputs, for inter-connection to any fire alarm panel (supervisory signals).
  • Touch screen on RAU door for local monitoring of alarm conditions, in addition to the remote DRC.
  • NYC Fire Department key switch to activate channel 11 and channel 12 on the RAU door, for ease of maintenance, and for redundancy to the DRC.
  • Adjustable stainless-steel legs for ease of installation, avoiding the need of a housekeeping pad.
  • Power Supply is UL Listed, and fully NFPA 1221 alarms compliant. All components are UL Listed.
  • Proudly made in the USA.

Additional information

Weight 180 lbs
Dimensions 33 × 77 × 186 in
Color

Red

Specs Sheet

Product Specification PDF, click on the icon below to download.
